Key Features:
- Dual inputs and three outputs for smart energy management
- Maximum PV input current 40A
- Built-in Wi-Fi for mobile monitoring and OTA firmware
- Supports USB (Type-A or Type-C) On-the-Go function for exporting log and firmware upgrade
- Reserved communication port for BMS
- Built-in external CT sensor to guarantee 100% self-consumption
- Battery independent design
- Built-in 120A MPPT solar charger
- Built-in anti-dust kit
| Specification | Details |
|---|---|

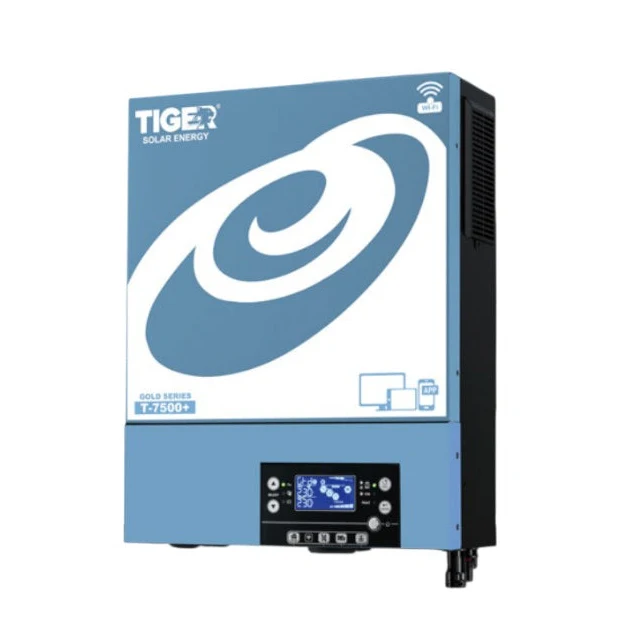

| Model | Tiger Gold Series T-7500+ |
| Rated Power | 4500VA / 4500W |
| Input Voltage | 230 VAC |
| Selectable Voltage Range | 170–280 VAC (For Personal Computers) / 90–280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz / 60 Hz (Auto Sensing) |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 9000VA |
| Efficiency | 93% |
| Transfer Time | 10 ms (For PCs) / 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 7500W |
| MPP Range @ Operating Voltage | 60 ~ 450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Input Current | 40A |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Total Charge Current | 120A |
| Dimension (D × W × H) | 131 × 336 × 435.5 mm |
| Net Weight | 11.8 kg |
| Communication Interface | USB / RS232 / RS485 / WiFi / Dry-contact |
| Humidity | 5% to 95% RH (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
