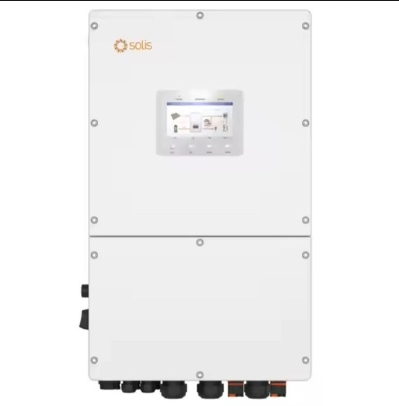

Solis S6-EH1P6K-L-PLUS 6KW Hybrid Solar Inverter
Solis S6-EH1P6K-L-PLUS 6KW Hybrid Solar Inverter 2025 Model
The Solis S6-EH1P6K-L-PLUS is a powerful and versatile hybrid solar inverter designed to offer seamless integration with both solar systems and generators. With features like automatic UPS switching, customizable charge/discharge settings, and compatibility with both lead-acid and lithium batteries, it ensures optimal performance and flexibility for residential and commercial applications.
₨ 265,000
Key Features
- Generator Connectivity: Supports multiple input methods and automatic generator On/Off control, enhancing system flexibility.
- Automatic UPS Switching: Provides quick 10-second automatic switching with 200% surge power backup, ensuring reliable power during outages.
- Surge Power Backup Overload Capability: Capable of handling overloads with 200% surge power, making it suitable for high-demand applications.
- Flexible Connection Options: Supports both single-phase and three-phase connections, with the ability to scale up to a maximum of 36 kW in parallel.
- High Charge/Discharge Current: Supports up to 135A max charge/discharge current, providing efficient energy storage and management.
- Customizable Charge/Discharge Settings: Offers 6 customizable charge/discharge time settings to optimize battery usage and performance.
- Battery Compatibility: Compatible with both lead-acid and lithium batteries, with built-in battery protection features for enhanced safety.
- Peak Shaving Control: Available in both “self-use” and “generator” mode to help manage energy usage and reduce utility costs.
Specifications
- Rated Power: 6KW
- Battery Compatibility: Lead-acid and Lithium
- Max Charge/Discharge Current: 135A
- Surge Power Backup: 200% surge capability
- Generator Mode: Supports automatic generator On/Off control
- Connection Type: Supports both single-phase and three-phase connections, up to 36 kW in parallel
- Operating Mode: Self-use and Generator mode with peak shaving control
- Model Year: 2025
Summary
The Solis S6-EH1P6K-L-PLUS 6KW Hybrid Solar Inverter is an advanced solution for users looking to optimize their solar energy use with flexibility and high performance. Its ability to seamlessly integrate with both solar panels and generators, along with its support for high charge/discharge currents and multiple battery types, makes it ideal for various energy needs. The inverter’s peak shaving and UPS capabilities ensure efficient and reliable power management, providing significant savings and energy independence.
Specifications:
| Models | 6K |
| Input DC (PV side) | |
| Recommended max. PV array size | 12 kW |
| Max. usable PV input power | 9.6 kW |
| Max. input voltage | 500 V |
| Rated voltage | 330 V |
| Start-up voltage | 90 V |
| MPPT voltage range | 90 – 435 V |
| Max. input current | 16 A / 16 A |
| Max. short circuit current | 20 A / 20 A |
