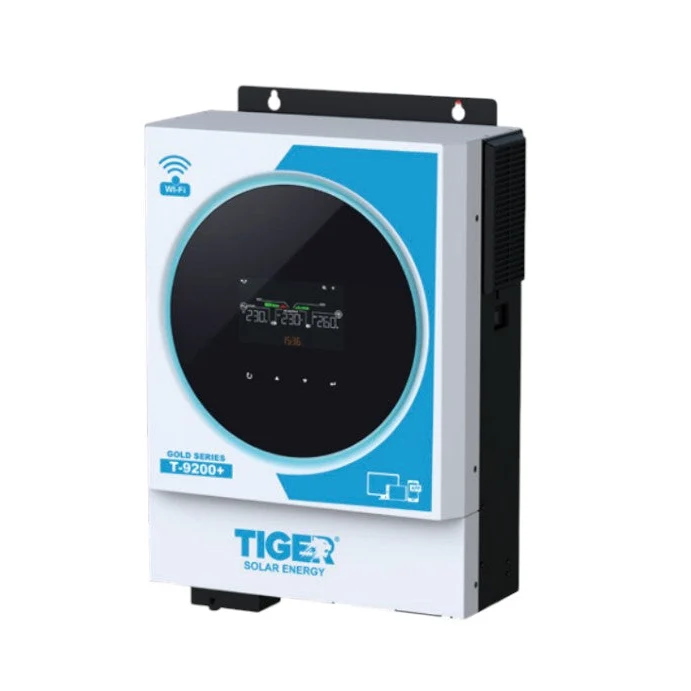

Tiger T-9200+ Gold Series 6kW Hybrid Solar Inverter With 9200W PV | Dual Output | Built-in WiFi | Pure Sine Wave | BMS Port
Tiger T-9200+ Gold Series 6kW Hybrid Solar Inverter With 9200W PV | Dual Output | Built-in WiFi | Pure Sine Wave | BMS Port - Image 2

Tiger T-9200+ Gold Series 6kW Hybrid Solar Inverter With 9200W PV | Dual Output | Built-in WiFi | Pure Sine Wave | BMS Port

Compare

Built with MPPT solar charging technology, pure sine wave output, and a high 93% efficiency rate, the T-9200+ delivers reliable, clean, and stable power for sensitive electronics and heavy appliances alike. Its smart protection features and parallel operation support make it ideal for modern off-grid or hybrid energy systems.

₨ 144,999 ₨ 165,999

Key Features:

  • Rated Power: 6KW for stable and high-capacity output
  • Hybrid Functionality: Works with solar, battery, and grid sources
  • High MPPT Efficiency: Maximizes solar energy conversion
  • Pure Sine Wave Output: Safe for sensitive electronics
  • Smart LCD Display: Easy monitoring and operation
  • Built-in Protection: Overload, short circuit, and overcharge safeguards
  • Parallel Function Support: Expandable system up to multiple units
  • Compact & Durable Design: Ideal for home, office, and commercial setups
Specification Details
Model Gold Series T-9200+
Rated Power 6000VA / 6000W
Input Voltage 230 VAC
Selectable Voltage Range 170–280 VAC (For Personal Computers) / 90–280 VAC (For Home Appliances)
Frequency Range 50 Hz / 60 Hz (Auto Sensing)
AC Voltage Regulation (Battery Mode) 230VAC ± 10%
Surge Power 12000VA
Efficiency 90% ~ 93%
Transfer Time 10 ms (For Personal Computers) / 20 ms (For Home Appliances)
Waveform Pure Sine Wave
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 63 VDC
Solar Charger Type MPPT
Maximum PV Array Power 9200W
MPP Range @ Operating Voltage 60 ~ 450 VDC
Maximum PV Array Open Circuit Voltage 500 VDC
Maximum PV Input Current 40A
Maximum Solar Charge Current 120A
Maximum AC Charge Current 100A
Maximum Combined Charge Current 120A
Dimensions (D × W × H) 136 × 300 × 400.2 mm
Net Weight 12 kg
Communication Interface USB / RS232 / RS485 / WiFi / Dry-contact
Humidity 5% to 95% RH (Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
