Key Features
-
4000W rated power with 8000VA surge capability
-
Pure sine wave output for smooth performance
-
MPPT solar charging with up to 5600W PV input
-
Fast 10–20 ms transfer time for sensitive electronics
-
Wide PV voltage range (60–450 VDC)
-
Multi-communication interfaces: USB, RS232, RS485, WiFi, Dry-contact
-
Compact design with low weight for easy installation
| Category | Specification |
|---|---|

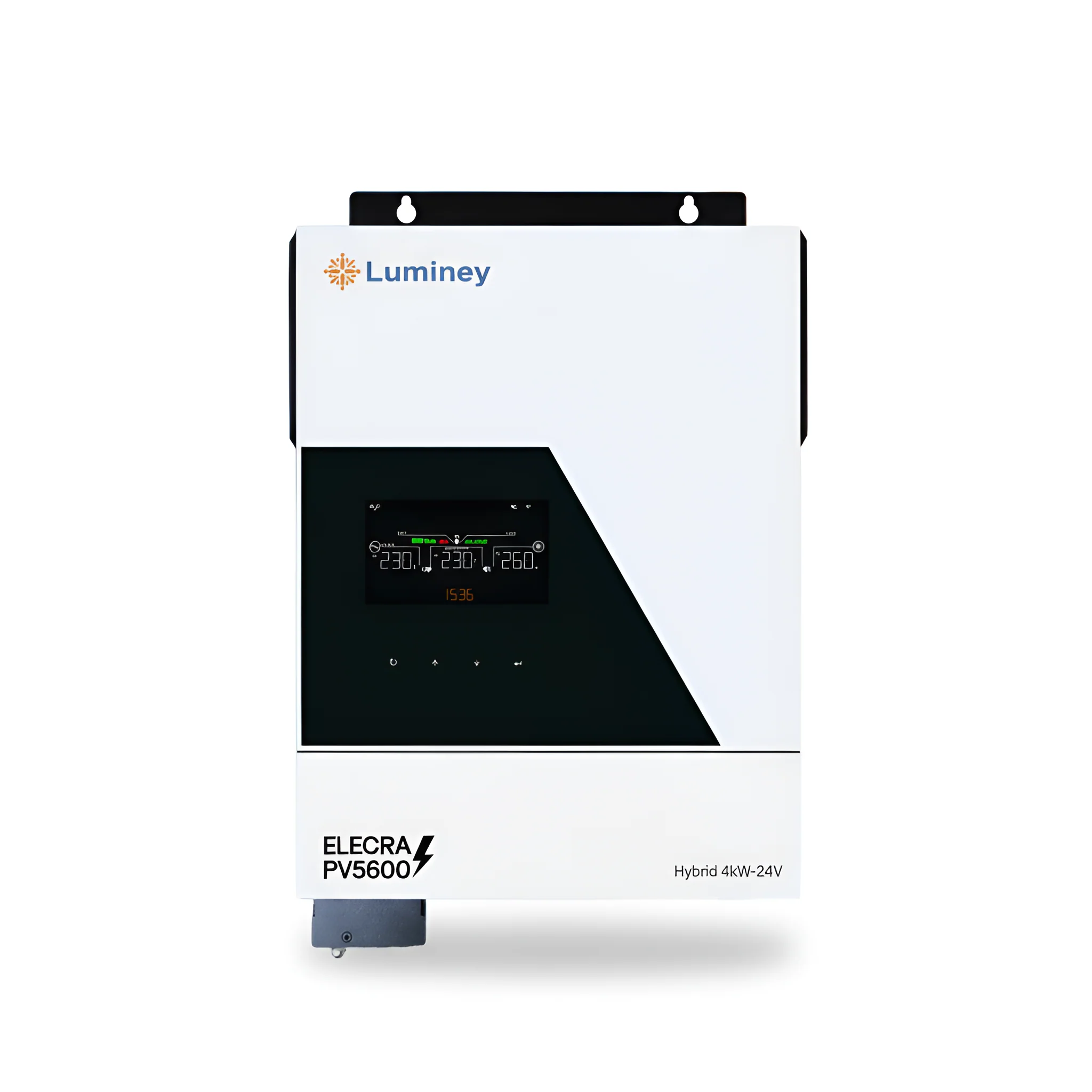

| MODEL | Elecra PV5600 |
| Rated Power | 4000VA / 4000W |
| Input Voltage | 230VAC ±10% |
| Selectable Voltage Range | 170–280 VAC (PC mode) / 90–280 VAC (Home Appliances) |
| Frequency Range | 50Hz / 60Hz (Auto sensing) |
| Output – AC Voltage Regulation (Batt. Mode) | 230 VAC |
| Surge Power | 8000VA |
| Efficiency (Peak) | 90% – 93% |
| Transfer Time | 10 ms (PCs) / 20 ms (Home Appliances) |
| Waveform | Pure Sine Wave |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 5600W |
| MPP Operating Voltage Range | 60 – 450 VDC |
| Maximum PV Open Circuit Voltage | 500 VDC |
| Maximum PV Input Current | 27A |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current (Combined) | 120A |
| Dimensions (D×W×H) | 119 × 313.6 × 457.5 mm |
| Net Weight | 10 kg |
| Communication Interface | USB / RS232 / RS485 / WiFi / Dry-contact |
| Humidity | 5% – 95% RH (Non-condensing) |
| Operating Temperature | –10°C to 50°C |
| Storage Temperature | –15°C to 60°C |
