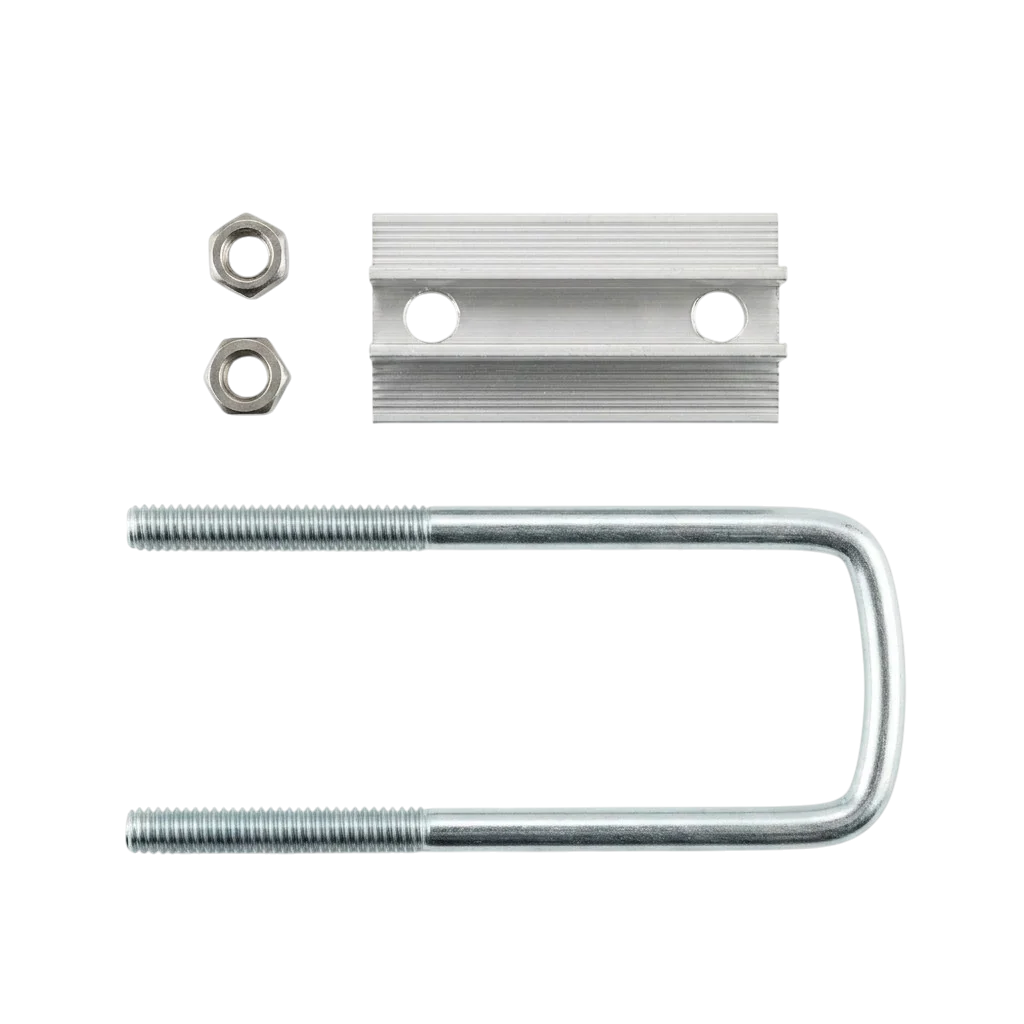

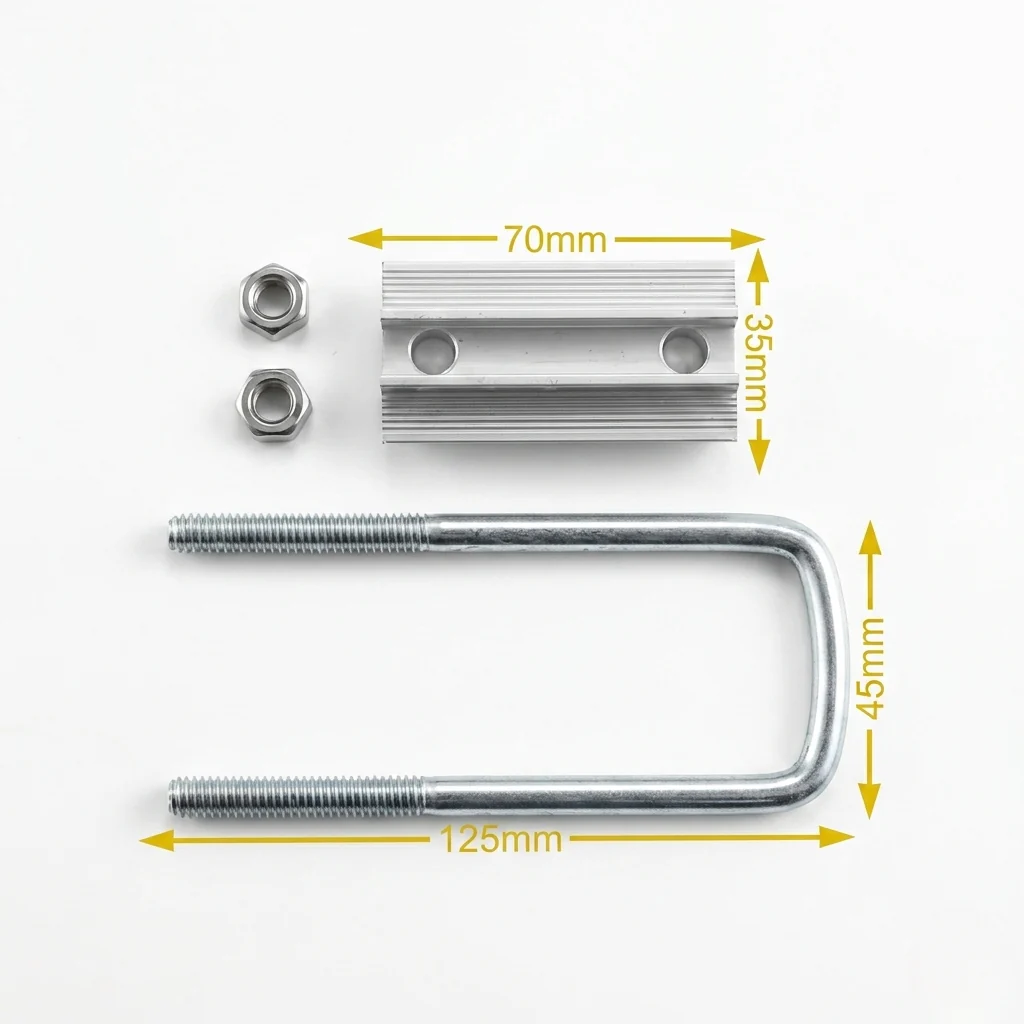

Solar Mid Clamp with U-Bolt – Aluminum Clamp With Galvanized Iron Mounting Bracket for PV Panels

Build & Material Construction

• Hybrid Material Design: Combines a lightweight, rust-resistant Aluminium Alloy Mid Clamp (for direct panel frame contact) with a heavy-duty Galvanized Iron (GI) Mounting Bracket & U-Bolt (for underlying structural attachment).

• Corrosion Protection: The aluminum section features an anodized finish to prevent oxidation, while the GI bracket and U-bolt are hot-dip galvanized to withstand outdoor moisture and extreme weather conditions without rusting.

• Heavy-Duty Structural Support: The rigid GI steel bracket and U-bolt assembly offer high mechanical strength, preventing flexing or displacement under high stress.

Functionality & Mounting Versatility

• Dual-Panel Inter-Clamping: Designed specifically to sit in the gap between two adjacent solar panels, locking down both framed modules simultaneously.

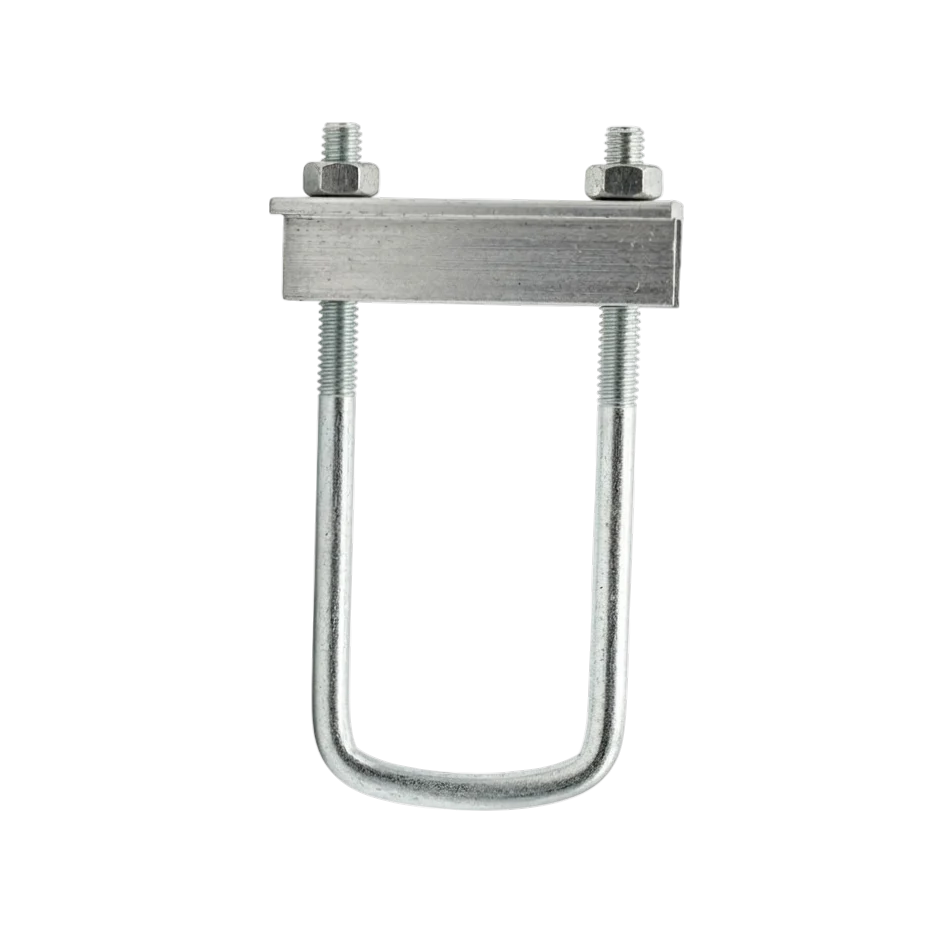

• Direct Pipe/Tube Mounting: The included U-bolt mechanism allows the clamp to be mounted directly onto round pipes, tubular trusses, or pole structures without requiring standard aluminum solar rails.

• High Wind & Load Resistance: Provides strong clamping force and high pull-out resistance to hold panels firmly in place during heavy wind gusts and vibrations.

Installation & Applications

• Ideal for Custom/Welded Structures: Commonly used in custom ground mounts, pole-mount systems, farm solar setups, and steel tube frame structures where standard rail profiles aren’t used.

• Quick Alignment & Fastening: Simplifies installation on tubular frames with standard thread-and-nut fastening using basic hand tools.
