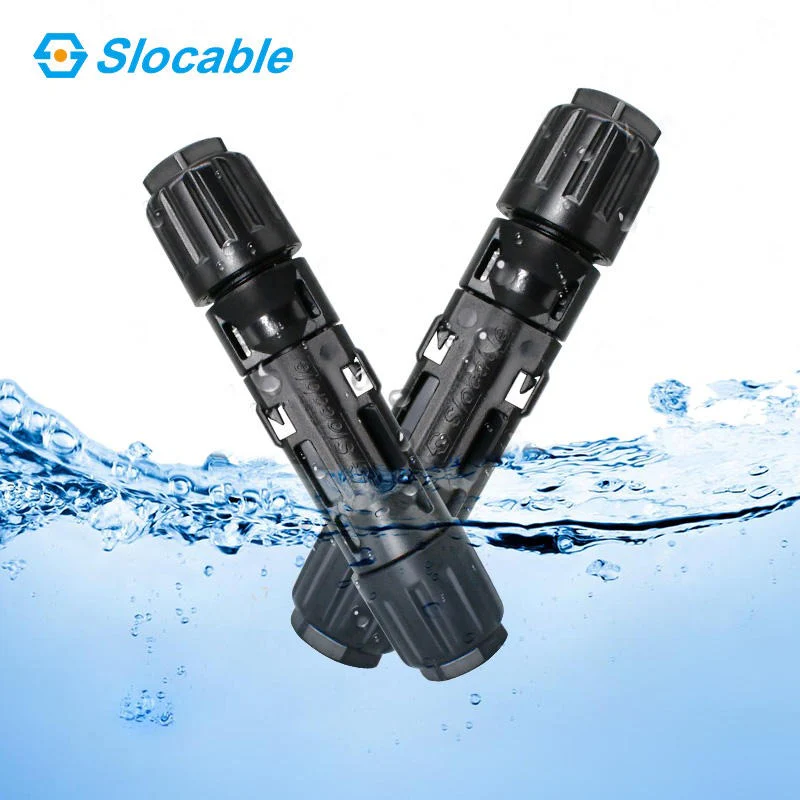

Slocable Solar Panel IP68 MC4 Connector 1500VDC
The Slocable Solar Panel IP68 MC4 Connector (1500VDC) is a heavy-duty, weather-proof electrical coupling pair (male and female set) engineered for high-voltage photovoltaic (PV) systems. Built specifically to withstand harsh outdoor conditions, it safely links individual solar panels to one another or directly into string inverters and combiner boxes.
₨ 280

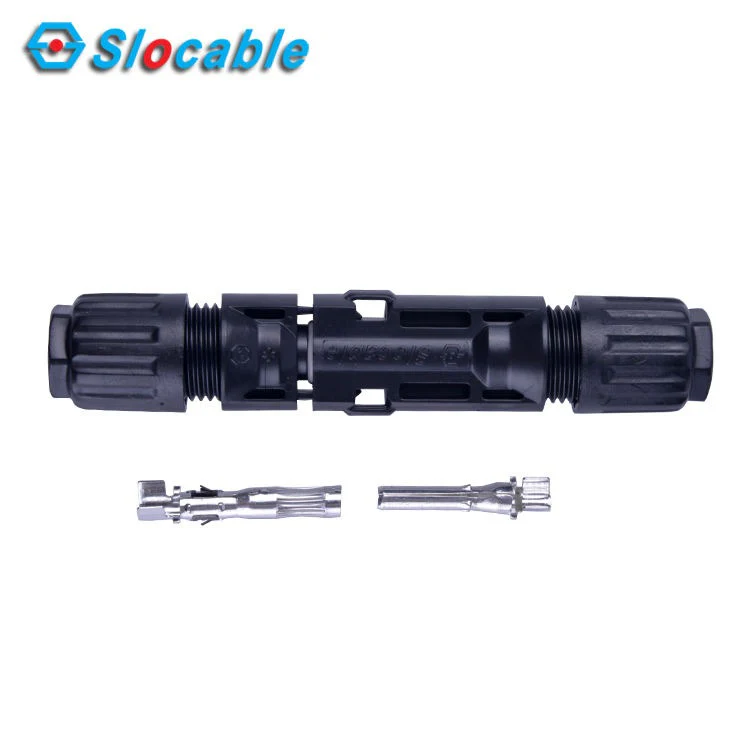

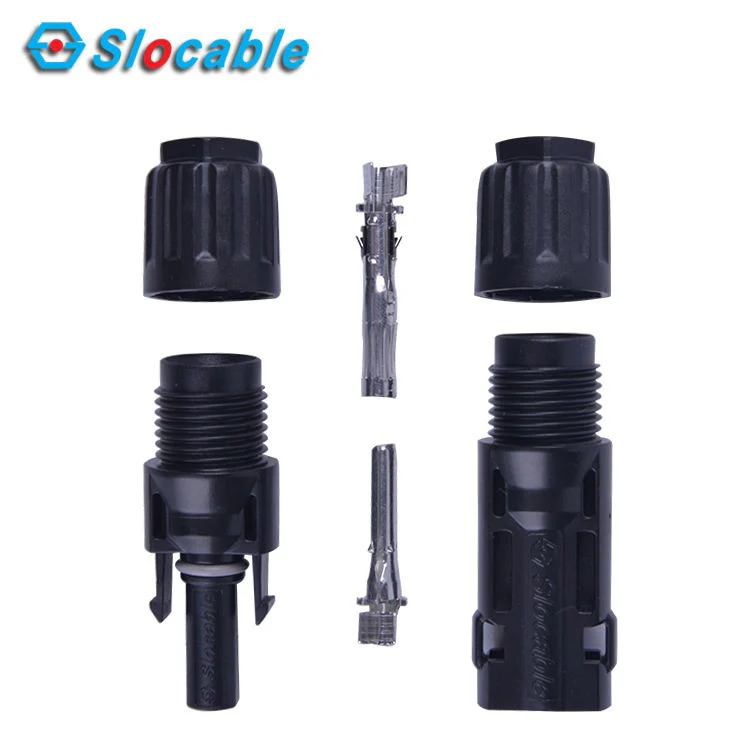

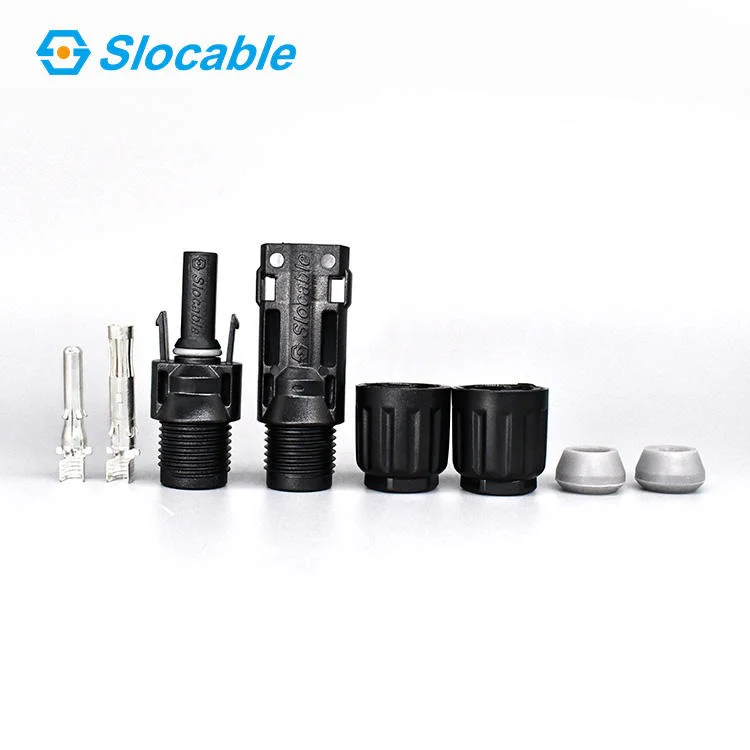

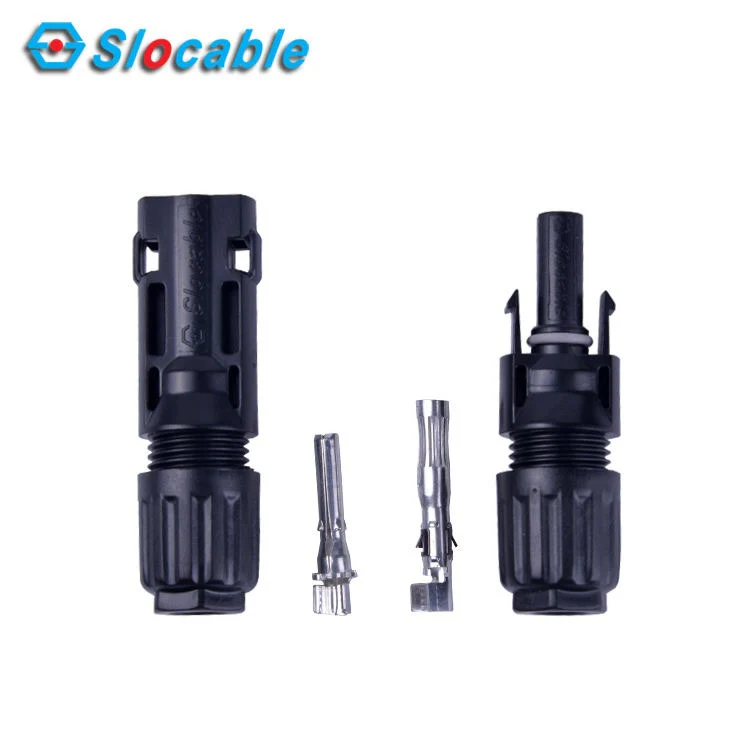

Note : It is a single set of male & female connector with pin
| Rated Current: | 50A |
| Rated Voltage: | 1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | PPO |
| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <0.5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6.0mm² (14-8AWG ) |
