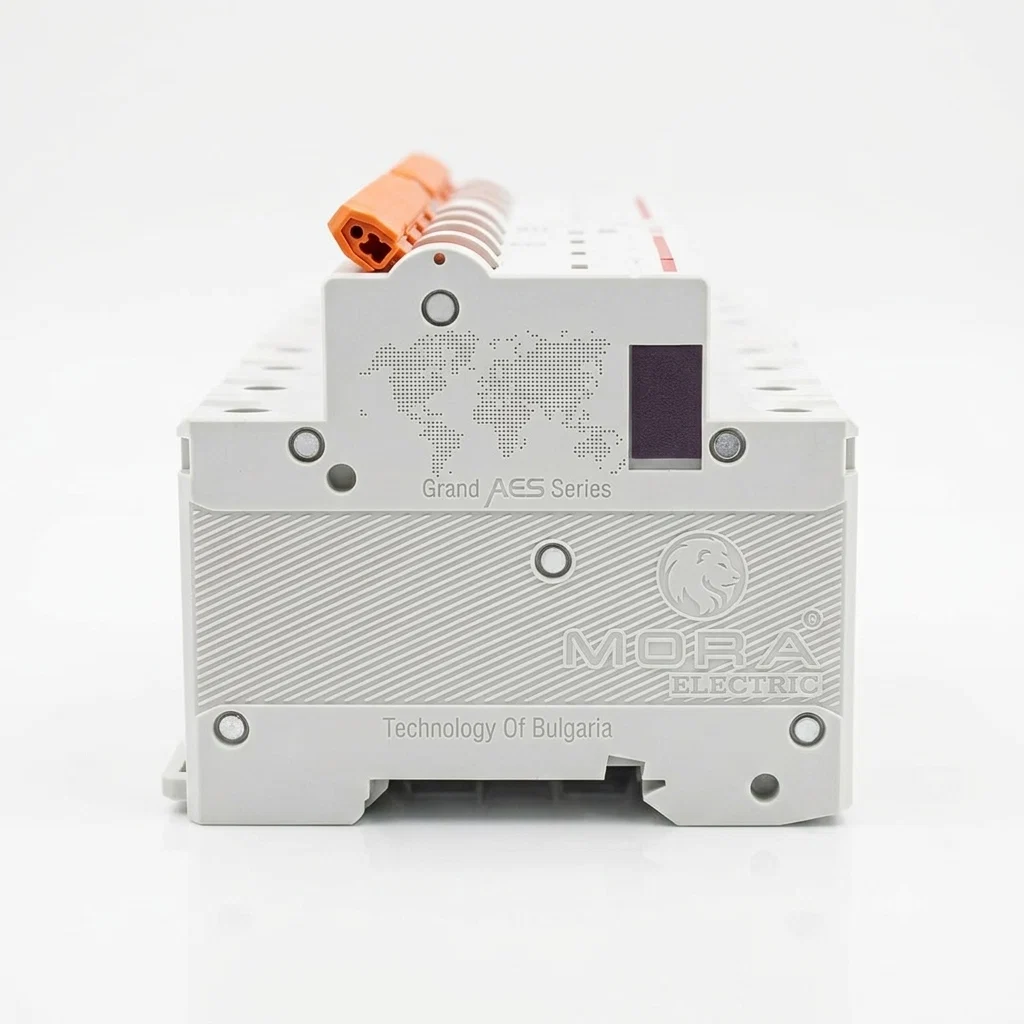

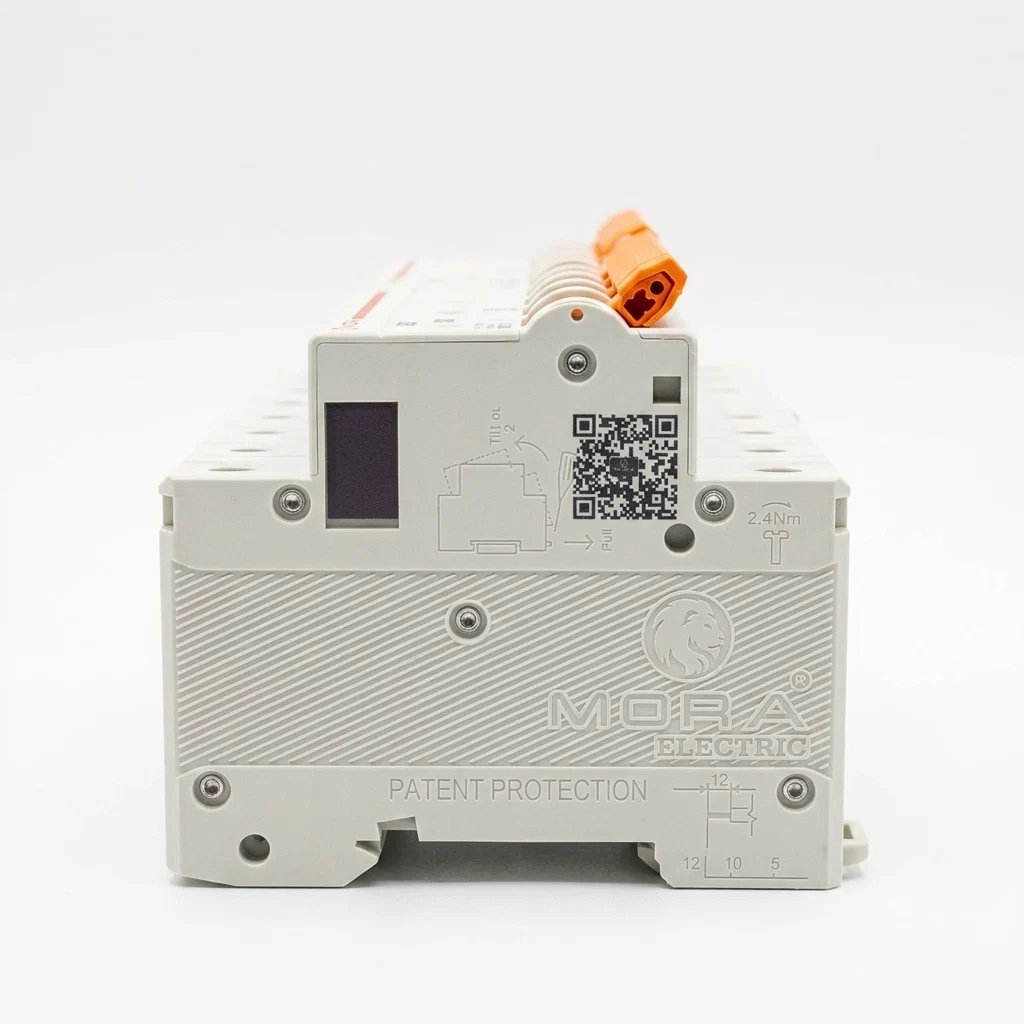

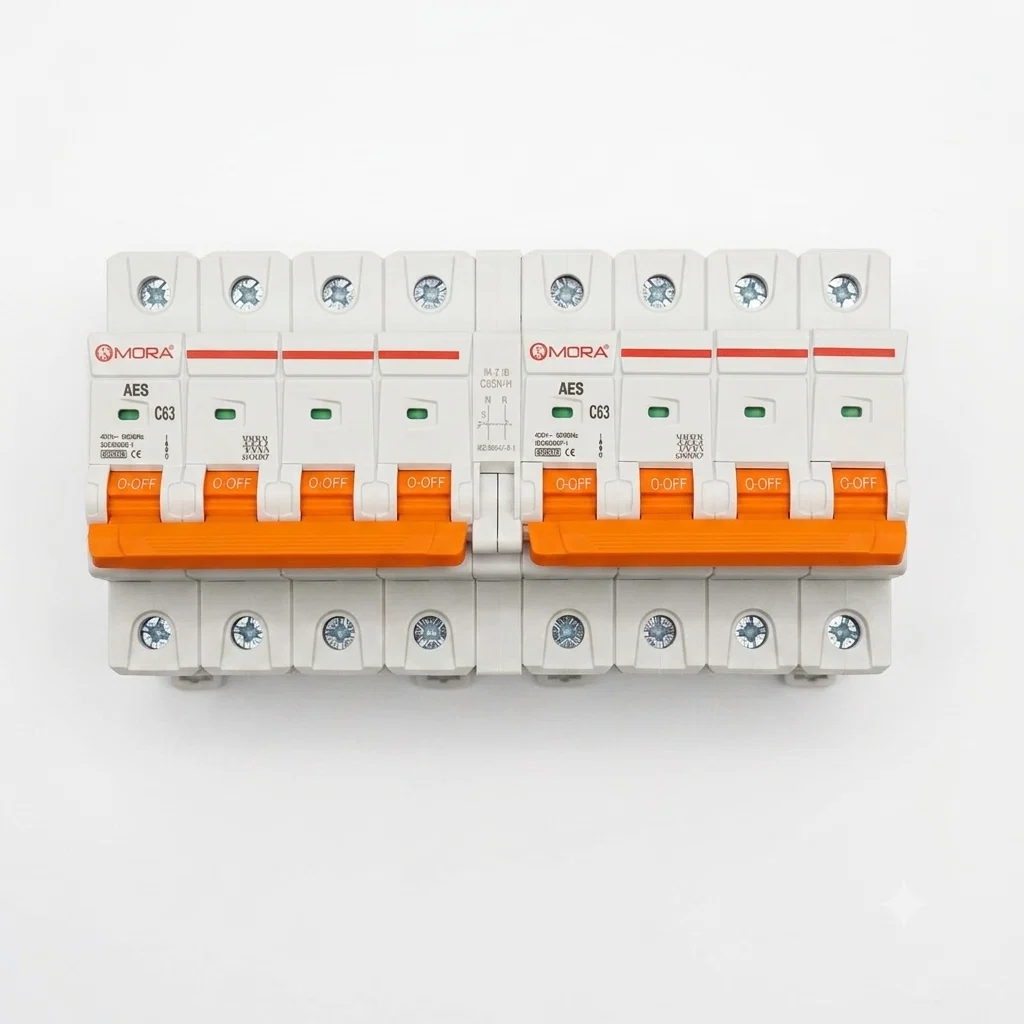

Mora AC 4P+4P 63A MTS Dual power Manual transfer switch Circuit breaker MCB 50HZ/60HZ Change Over

Core Specifications

• Brand / Series: Mora (AES-60H / AES series)

• Configuration: 4P + 4P (4-Pole Dual Input / Output for switching 3-Phase + Neutral)

• Current Rating: 63A

• Operating Frequency: 50 Hz / 60 Hz

• Voltage System: AC Three-Phase 4-Wire (or adaptable for dual single-phase loads)

• Mounting Type: Standard 35mm DIN Rail Mount

• Switching Type: Manual changeover with integrated mechanical safety interlock

Key Features & Benefits

1. Mechanical Interlock Protection: Features a built-in interlock structure that physically prevents both power sources from being switched on at the same time, protecting your appliances, solar inverters, and utility equipment from backfeeding or short circuits.

2. Full Neutral & Phase Isolation: Switches all 4 poles (L1, L2, L3, and Neutral) to ensure complete isolation of the inactive power source for operator safety and code compliance.

3. MCB Form Factor: Designed in a modular miniature circuit breaker (MCB) housing for neat installation directly into standard distribution boxes and panel boards.

4. Heavy Load Handling: Rated up to 63 Amps per pole, making it well-suited for moderate to high residential and light commercial power distribution.
