Key Features
Advanced LiFePO4 Technology: Provides longer lifespan, higher safety, and better performance than traditional lead-acid batteries.
12V 200Ah High Capacity: Delivers reliable, long-lasting power for residential solar, UPS, and backup applications.
Smart Battery Management System (BMS): Protects against overcharging, over-discharging, overheating, overcurrent, and short circuits.
Built-in Circuit Breaker: Enhances electrical safety by providing an extra layer of protection during operation.
Long Cycle Life: Designed for thousands of charge and discharge cycles with minimal capacity loss.
Fast Charging Performance: Charges more quickly while maintaining high energy efficiency and stable output.
Expandable Energy Storage: Supports up to 4 batteries in series and 10 batteries in parallel for scalable power solutions.
Wide System Compatibility: Works seamlessly with most residential solar inverters, UPS systems, and backup power setups.
Maintenance-Free Design: Requires no regular maintenance, reducing operating costs and ensuring hassle-free use.
IP20 Indoor Protection: Designed with an IP20-rated enclosure for safe and reliable indoor installation.
| Specification | Details |
|---|---|

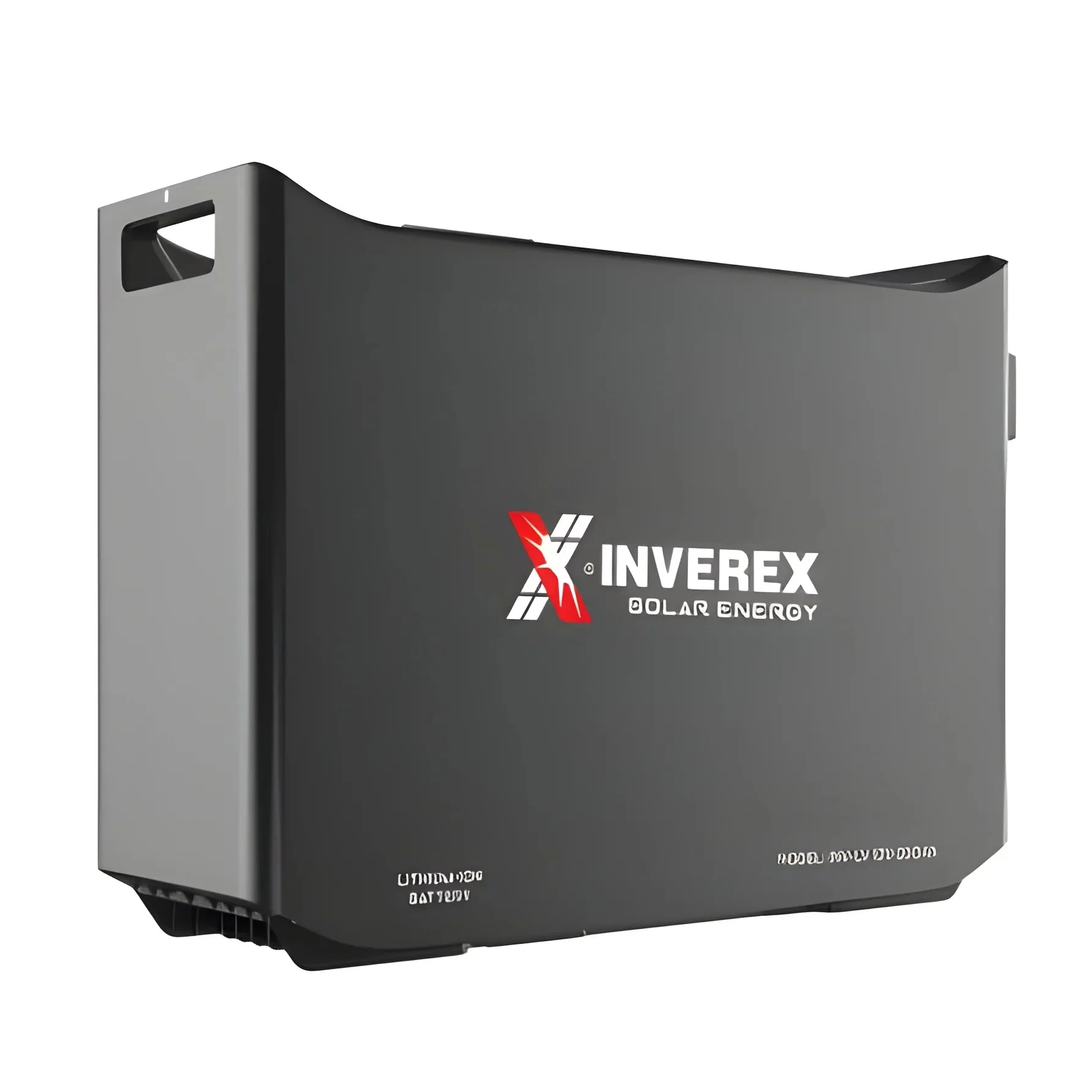

| Model | INV-LV 12V-200AH |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Nominal Capacity | 200 Ah |
| Nominal Voltage | 12.8 V |
| Operating Voltage | 11.2 V – 14.6 V |
| Nominal Energy | 2.56 kWh |
| Cell Configuration | Prismatic, 2P4S |
| Scalability | Max. 4 units in series (51.2 V) and Max. 10 units in parallel |
| Max. Continuous Charge Current | 200 A |
| Peak Charge Current | 300 A (10 sec) |
| Max. Continuous Discharge Current | 200 A |
| Peak Discharge Current | 300 A (10 sec) |
| Recommended Depth of Discharge (DoD) | 80% |
| Dimensions (W × D × H) | 471 × 160 × 348 mm |
| Approximate Weight | 21 kg |
| Case Material | ABS + PC |
| LED Indicator | LED (SOC, Working, Protecting) & Buzzer |
| Communication | RS485 |
| Enclosure Rating | IP20 |
| Operating Temperature | Charge: 0°C to 55°C; Discharge: -20°C to 55°C |
| Storage Temperature | 0°C to 35°C |
| Relative Humidity | 95% |
| Maximum Altitude | ≤ 2000 m |
| Cycle Life | ≥ 6000 Cycles (25±2°C, 0.2C Charge/Discharge, 80% DoD, 70% EOL) |
| Warranty | 5 Years |
| Installation | Floor-Mounted, Stack-Mounted |
| Certifications | UN38.3, MSDS |
