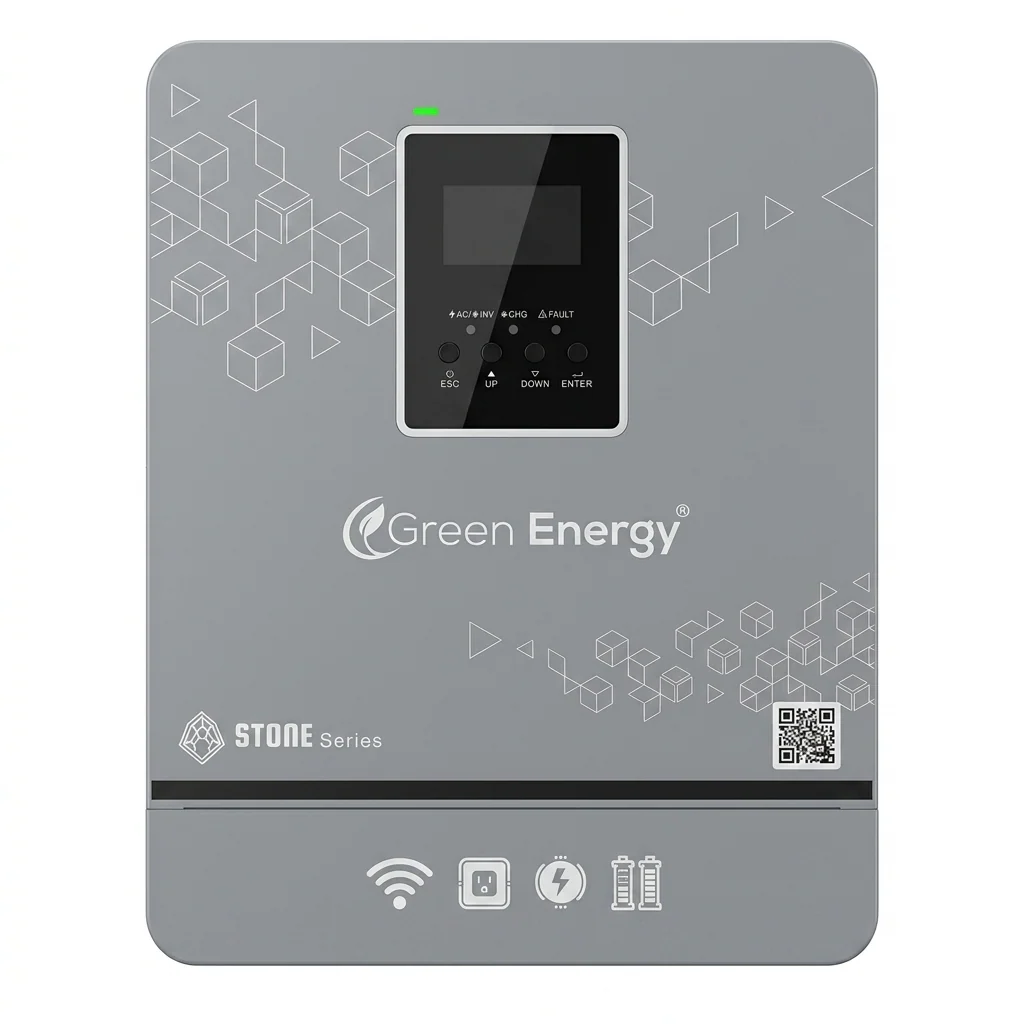

Green Energy Stone Series 3.6kW PV5200 Off-Grid Solar Inverter | Pure Sine Wave UPS
The Green Energy Stone Series 3.6kW PV5200 is a reliable off-grid solar inverter designed for homes, offices, and backup power systems in Pakistan. Built with pure sine wave technology, it delivers stable and efficient performance for sensitive electronics, appliances, fans, lights, and solar systems. Perfect for home backup systems and solar energy setups, the Green Energy Stone Series combines durability, efficiency, and intelligent power management in one compact solution.
₨ 66,999 ₨ 69,999
Key Features
- 3.6kW Off-Grid Solar Inverter
Reliable backup power solution for homes and small offices. - Pure Sine Wave Output
Safe and stable power for sensitive electronics and appliances. - High Efficiency up to 94%
Maximizes solar energy utilization and reduces power loss. - Hybrid Functionality
Supports solar panels, batteries, and utility grid simultaneously. - Smart LCD Display
Displays voltage, battery status, load status, and system information. - Multiple Working Modes
Includes Solar Priority and UPS mode for flexible operation. - WiFi & Mobile Monitoring Support
Monitor inverter performance remotely on supported models.
| Parameter / Feature | STONE 3024PV5200 (3.6KW) |
| INPUT | |
| Rated Input Voltage | 220 / 230 / 240VAC |
| Voltage Range (APL Mode) | 90-280VAC ±3V |
| Voltage Range (UPS Mode) | 170-280VAC ±3V |
| Frequency Range | 50Hz / 60Hz (Auto Adaptive) |
| OUTPUT | |
| Battery Inverter Capacity | 3600W |
| Photovoltaic Inverter Capacity | 3600W |
| Peak Power | 7200VA |
| Output Voltage | 220 / 230 / 240VAC ± 5% |
| Output Frequency | 50 / 60Hz ± 0.1% |
| Waveform | Pure Sine Wave |
| Power Factor | 1 |
| Switching Time (Computer / UPS Mode) | 10ms |
| Switching Time (Appliance / APL Mode) | 20ms |
| Overload Capacity (Battery Mode) | 11s @ 105%-150% Load; |
| 2s @ 150%-200% Load; | |
| 400ms @ >200% Load | |
| BATTERY | |
| Rated Voltage | 24Vdc |
| Constant Voltage Charging Voltage | 28.2Vdc (Configurable) |
| Float Charging Voltage | 27Vdc (Configurable) |
| PV CHARGER | |
| PV Charging Method | MPPT |
| Maximum Input Power of PV | 5200W |
| MPPT Input Voltage Range | 30-500Vdc |
| Optimal Vmp Operating Range | 300-400Vdc |
| Maximum PV Input Voltage | 500Vdc |
| Maximum PV Input Current | 13A |
| Maximum PV Charging Current | 100A |
| Maximum Mains Charging Current | 60A |
| Maximum Total Charging Current | 100A |
| DISPLAY & INTERFACE | |
| LCD Interface | Displays Running Mode, Loads, Input/Output, etc. |
| RS232 | Baud Rate: 2400 |
| Expansion Slot Communication Interface | Lithium Battery BMS Card, Wifi Card, Dry Contact |
| Parallel Interface | No Parallel Connection |
| ENVIRONMENTAL PARAMETERS | |
| Operating Ambient Temperature | -10°C to +50°C |
| Operating Environment Humidity | 20%-95% (No condensation) |
| Storage Temperature | -15°C to +60°C |
| Noise | <45dB |
| PHYSICAL PARAMETERS | |
| Dimensions (Depth x Width x Height) | $482 \times 371 \times 176\text{ mm}$ |
| Standards and Certifications | EN-IEC60335-1, EN-IEC60335-2-29, IEC62109-1 |
