CNC YC7VA 2in1 2P Overvoltage and Undervoltage Protector

CNC YC7VA 2in1 2P Overvoltage and Undervoltage Protector

Compare

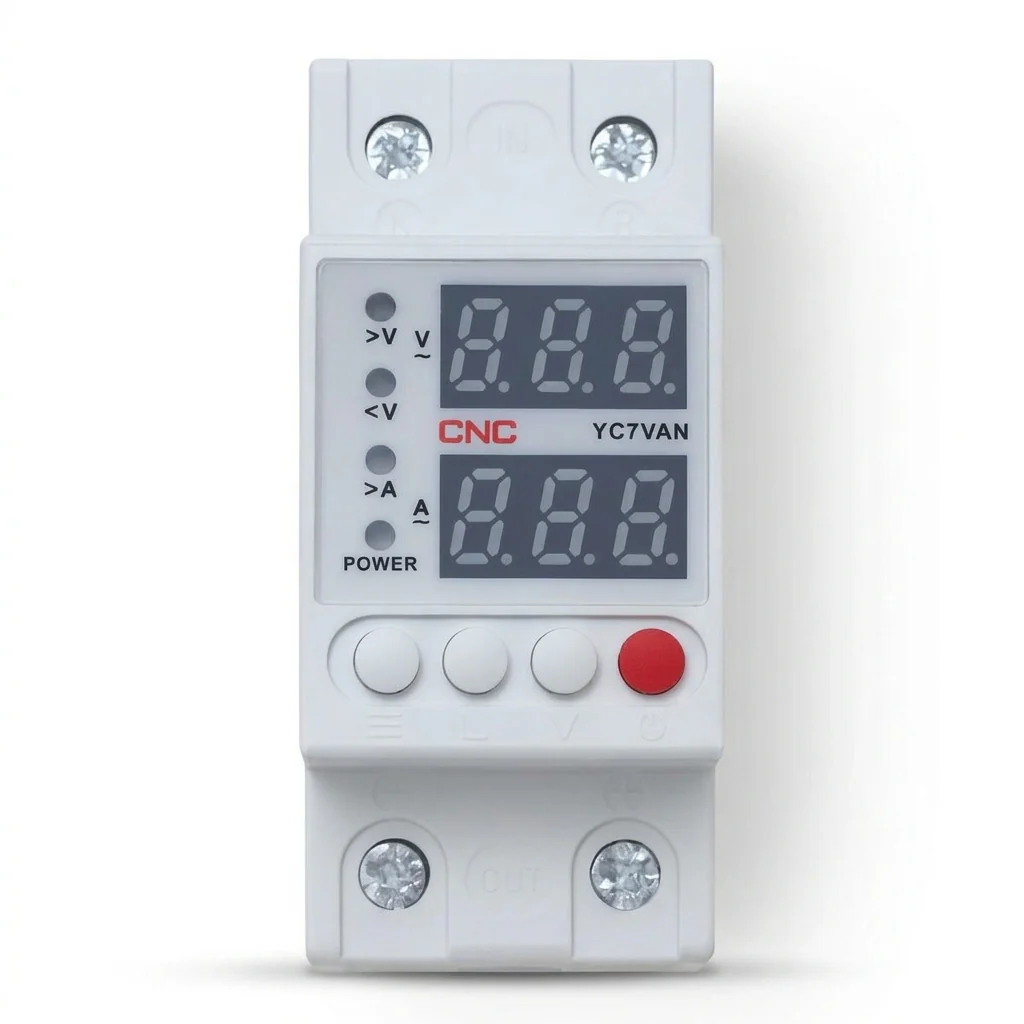

CNC YC7VA 2in1 63A 2P Overvoltage and Undervoltage Protector

The CNC YC7VA 2in1 63A 2P is a versatile overvoltage and undervoltage protection relay with voltage and current display capabilities. Designed for single-phase AC networks, it ensures the safety of electrical equipment by protecting against voltage surges, undervoltage, and overcurrent. With its microprocessor-based design, it provides precise monitoring, digital voltage display, and customizable settings for optimal performance. The device is suitable for residential, industrial, and administrative applications.

₨ 2,000 ₨ 2,499

Key Features

  • Voltage and Current Display: Real-time monitoring of main voltage and current with a digital display for clear visualization.
  • Surge Protection: Protects equipment from overvoltage (130-300V) and undervoltage (80-210V) issues.
  • Customizable Settings: User-configurable voltage values and delay times, stored in non-volatile memory.
  • High Compatibility: Supports connections using aluminum or copper wires, with a wide operational voltage range (80V-300V).
  • Electromagnetic Relay Switching: Ensures reliable load switching with durable relay components.
  • Multiple Protection Modes: Functions include undervoltage, overvoltage, overcurrent protection, and operation as a voltmeter.
  • Robust Build: Designed to operate under harsh conditions with a wide temperature range (-50°C to 55°C) and high mechanical and electrical life expectancy.

Technical Specifications

  • Rated Voltage: AC 220V
  • Operating Voltage Range: AC 80V-300V
  • Frequency: 50Hz/60Hz
  • Rated Current Options: 15A, 25A, 32A, 50A, 63A
  • Overvoltage Setting Range: 130-300V
  • Undervoltage Setting Range: 80-210V
  • Current Trip Delay: Adjustable (1-999s, default 30s)
  • Reset/Start Delay: Adjustable (1-999s, default 5s)
  • Insulation Voltage: 400V
  • Protection Degree: IP20
  • Altitude: ≤2000m
  • Operating Temperature: -50°C ~ 55°C
  • Max Load Power: Up to 13.9kW (depending on current specification)

The CNC YC7VA-40 2P is an ideal choice for ensuring the safety and longevity of electrical systems in various environments. Its precision, durability, and user-friendly features make it indispensable for voltage and current protection applications.

NO. Option Code Option Max Min Default Step Unit
P1 Pt Power-on delay 999 1 5 1/10 S
P2 rt Recovery delay 999 1 30 1/10 S
P3 oU Overvoltage 300 130 270 1/10 V
P4 oUr Overvoltage recovery 295 125 265 1/10 V
P5 uU Undervoltage 210 80 170 1/10 V
P6 uUr Undervoltage recovery 215 85 175 1/10 V
P7 Utt Overvoltage action time 10.0 0.1 10 0.1/1 S
P8 UAd Voltage correction +10% -10% +0.5% 0.5% V
P9 oC Overcurrent 63.0 0.1 63.0 0.1/1 A
P10 Ctt Overflow as delay 10.0 0.1 10 0.1/1 S
P11 CC Continuous overcurrent counting 20 0 0 1 Times
P12 CAd Current correction +10% -10% 0 0.5% A
P13 FAd Frequency correction +2.5% -2.5% 0 0.1% Hz
P14 Fpd Rapid power failure protection on off on 1 MS
P15 dS Display mode 3 1 1 1/1
P16 Ar Automatic reset on off on 1
P17 Act Action/knife mode on off on 1
P18 EC Energy saving mode off on off 1
P19 Loc Setup lock password 999 000 112 1/10
