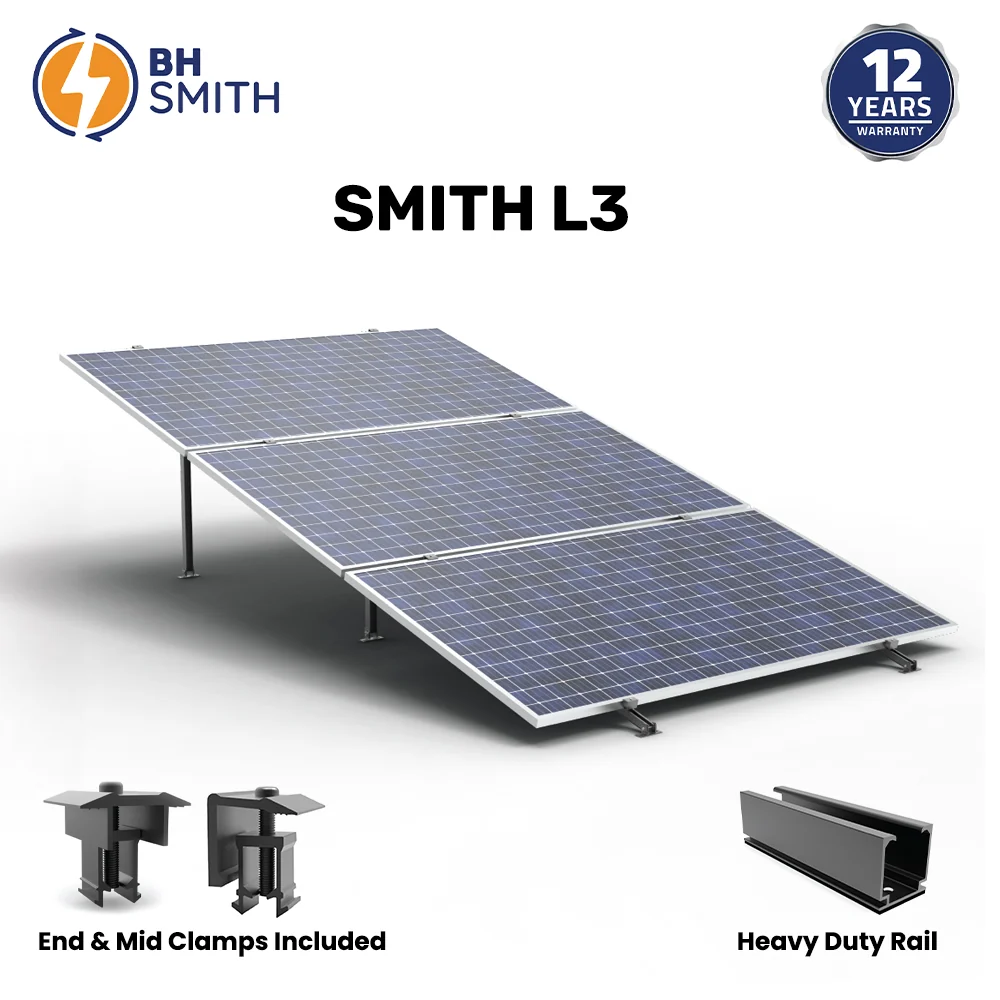

BHS Aluminium Smith L3 Solar Structure with clamps For three Solar Panel

Technical & Build Specifications

• High-Grade Material: Engineered using specially extruded T5 Aluminum Alloy, providing a strong structural frame with minimal rooftop dead weight.

• Corrosion Resistance: Features an SAA Type II Anodized surface finish (Matte Silver) that prevents rust, degradation, and weather damage in humid or harsh outdoor environments.

• Wind Rating: Built to withstand wind speeds up to 150 km/h, ensuring safe and stable anchoring on elevated setups.

• Fixed Tilt Angle: Preset to an optimal 15° tilt angle to balance solar radiation absorption and wind uplift resistance.

Capacity & Installation Features

• Three-Panel Capacity (L3 Standard): Specially sized and structured to securely mount three framed solar modules side-by-side.

• Module Compatibility: Compatible with standard framed solar panels (including high-wattage residential and commercial PV modules up to ~580W class).

• Complete Clamp Hardware Included: Comes bundled with matching aluminum mid clamps and end clamps (with fasteners) to lock all three panels tightly into position.

• Flat Surface Application: Purpose-built for concrete roofs, flat residential terraces, or flat commercial ground/roof slabs.

• Thermal Ventilation: The elevated profile promotes passive underside airflow, cooling the PV modules to reduce efficiency loss caused by heat buildup.

Warranty & Lifespan

• Long-Term Durability: Designed to match the 20+ year lifespan of modern solar panels, supported by a 12-Year Brand Structural Warranty.
