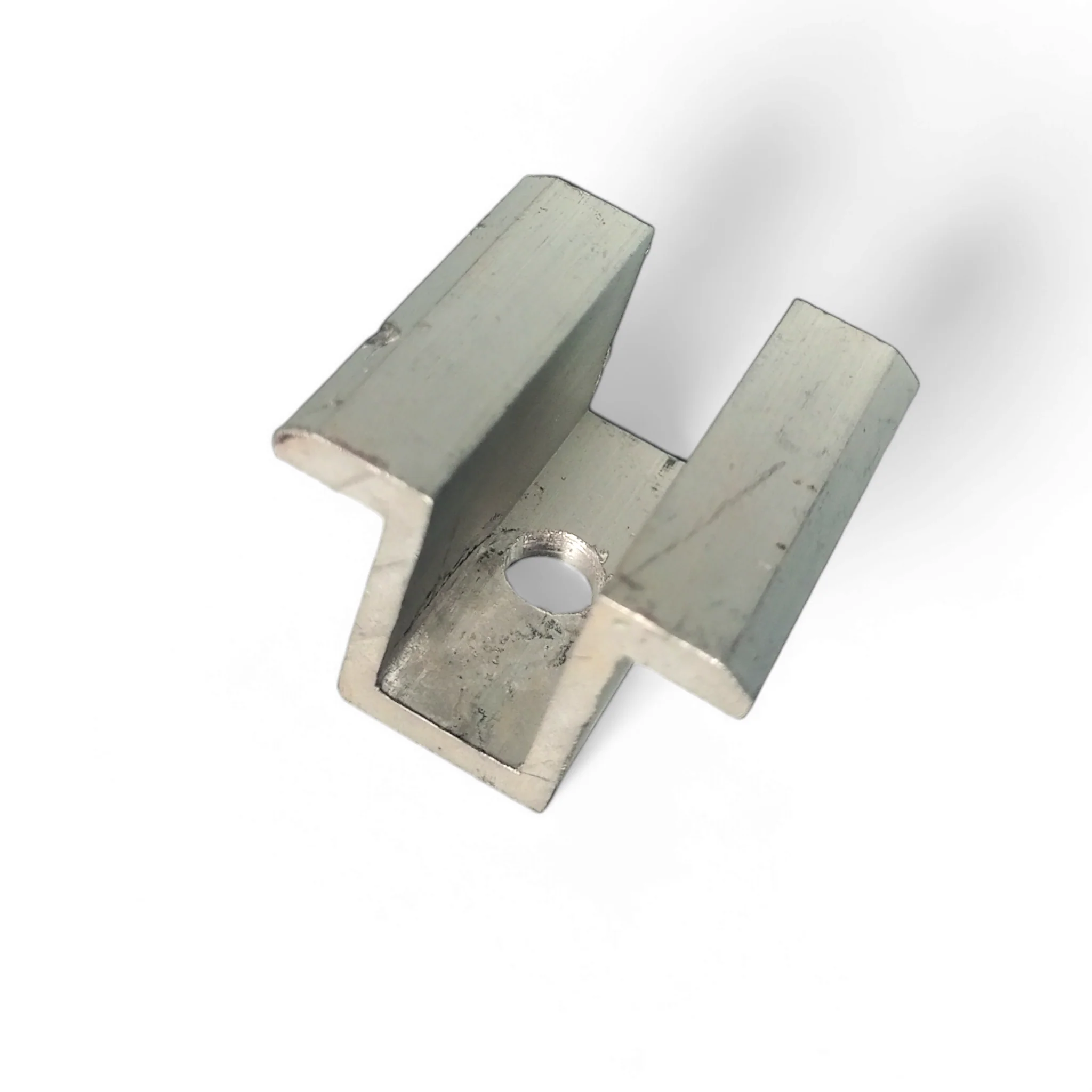

Aluminum Mid Clamp U Type for Solar Mount

Structural & Material Features

• High-Strength Aluminium Alloy: Crafted from extruded AL6005-T5 / AL6061-T5 aluminum, offering high mechanical strength without adding excessive weight to the structure.

• U-Channel Profile Design: The distinct U-shaped cross-section provides superior structural rigidity and clamping torque, preventing flex or bending under pressure.

• Anodized Surface Finish: Treated with an anodized coating (silver/matte) for maximum resistance against rust, UV degradation, and harsh weather conditions.

Functionality & Compatibility

• Dual-Panel Locking: Purpose-built to sit between two adjacent solar modules, securing both module frames simultaneously onto the underlying mounting rail.

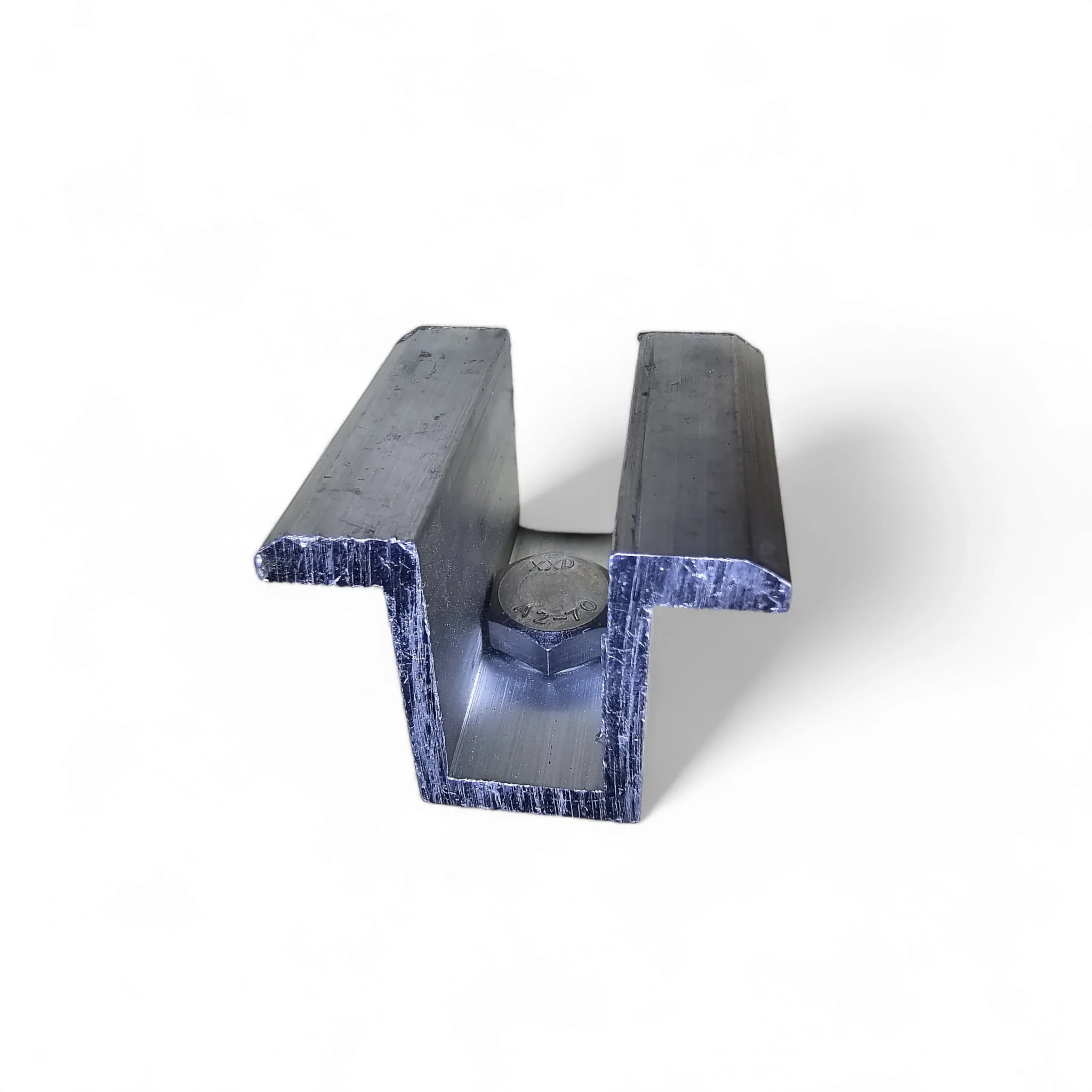

• Integrated Fastener Channel: The U-type geometry creates a dedicated channel for the mounting bolt and T-nut/channel nut, making alignment easy and straightforward.

• Standard Panel Compatibility: Compatible with standard framed PV modules (typically 30mm, 35mm, or 40mm thick frames depending on bolt length).

Installation & Reliability

• Quick Drop-In Setup: Designed to easily slide or drop into standard solar mounting rails (aluminum profile rails), significantly reducing installation time.

• Vibration & Wind Load Rated: Maintains consistent clamping force across the panel frames to withstand heavy wind uplift loads and thermal expansion cycles.
